A-A-52420A
NOTES:
1. Recommended diameter for proper plug installation shall be maximum plug outside diameter plus .002.
2. Dimensions are in inches.
CID PIN |
SUPERSEDED MS PIN |
NOMINAL DIAMETER |
OUTSIDE DIAMETER ‘A’ |
THICKNESS ‘B’ ± .005 |
RADIUS ‘C’ ± 1/64 |
ANGLE ‘D’ ± 1° |
|
MAX 1/
|
MIN
|
||||||
A52420-01 |
35648-01 |
1/4 |
.252 |
.248 |
0.32 |
7/32 |
32 |
A52420-02 |
35648-02 |
3/8 |
.377 |
.372 |
0.65 |
13/32 |
25 |
A52420-03 |
35648-03 |
1/2 |
.502 |
.498 |
0.65 |
17/32 |
25 |
A52420-04 |
35648-04 |
5/8 |
.628 |
.622 |
0.65 |
¾ |
23 |
A52420-05 |
35648-05 |
3/4 |
.753 |
.747 |
0.65 |
15/16 |
23 |
A52420-06 |
35648-06 |
7/8 |
.878 |
.872 |
0.83 |
1-3/32 |
23 |
A52420-07 |
35648-07 |
1 |
1.003 |
.997 |
0.83 |
1-1/8 |
24 |
A52420-08 |
35648-08 |
1-1/8 |
1.128 |
1.122 |
0.83 |
1-3/8 |
24 |
A52420-09 |
35648-09 |
1-1/4 |
1.253 |
1.247 |
0.83 |
1-5/8 |
21 |
A52420-10 |
35648-10 |
1-3/8 |
1.380 |
1.370 |
0.83 |
1-13/16 |
21 |
A52420-11 |
35648-11 |
1-1/2 |
1.505 |
1.495 |
0.83 |
2-1/8 |
21 |
A52420-12 |
35648-12 |
1-5/8 |
1.630 |
1.620 |
0.83 |
2-3/8 |
21 |
A52420-13 |
35648-13 |
1-3/4 |
1.755 |
1.745 |
0.83 |
2-11/16 |
19 |
A52420-14 |
35648-14 |
1-7/8 |
1.880 |
1.870 |
0.83 |
2-7/8 |
19 |
A52420-15 |
35648-15 |
2 |
2.005 |
1.995 |
0.83 |
3-3/16 |
19 |
A52420-16 |
35648-16 |
2-1/4 |
2.255 |
2.245 |
0.83 |
3-9/16 |
19 |
A52420-17 |
35648-17 |
2-1/2 |
2.505 |
2.495 |
0.83 |
4-5/32 |
17 |
A52420-18 |
35648-18 |
2-3/4 |
2.755 |
2.745 |
0.83 |
4-1/2 |
17 |
A52420-19 |
35648-19 |
3 |
3.005 |
2.995 |
0.83 |
5 |
17 |
A52420-20 |
35648-20 |
3-1/4 |
3.255 |
3.245 |
.134 |
5-1/2 |
17 |
A52420-21 |
35648-21 |
3-1/2 |
3.505 |
3.495 |
.134 |
6 |
17 |

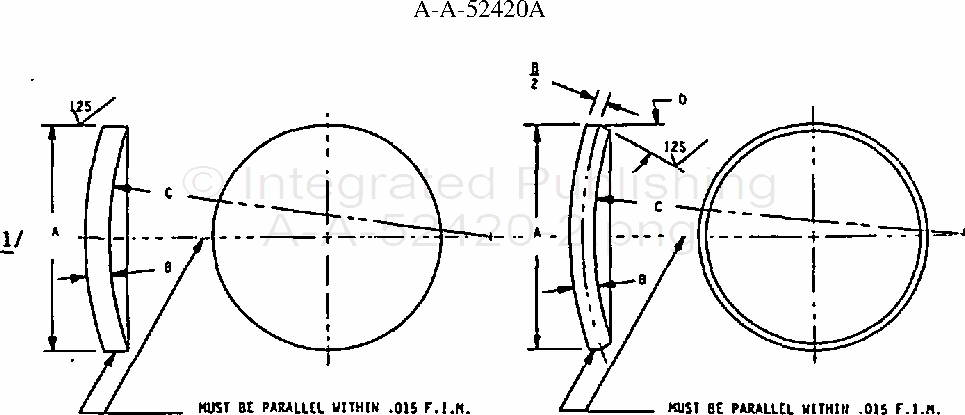

FIGURE 1. Design requirements.
